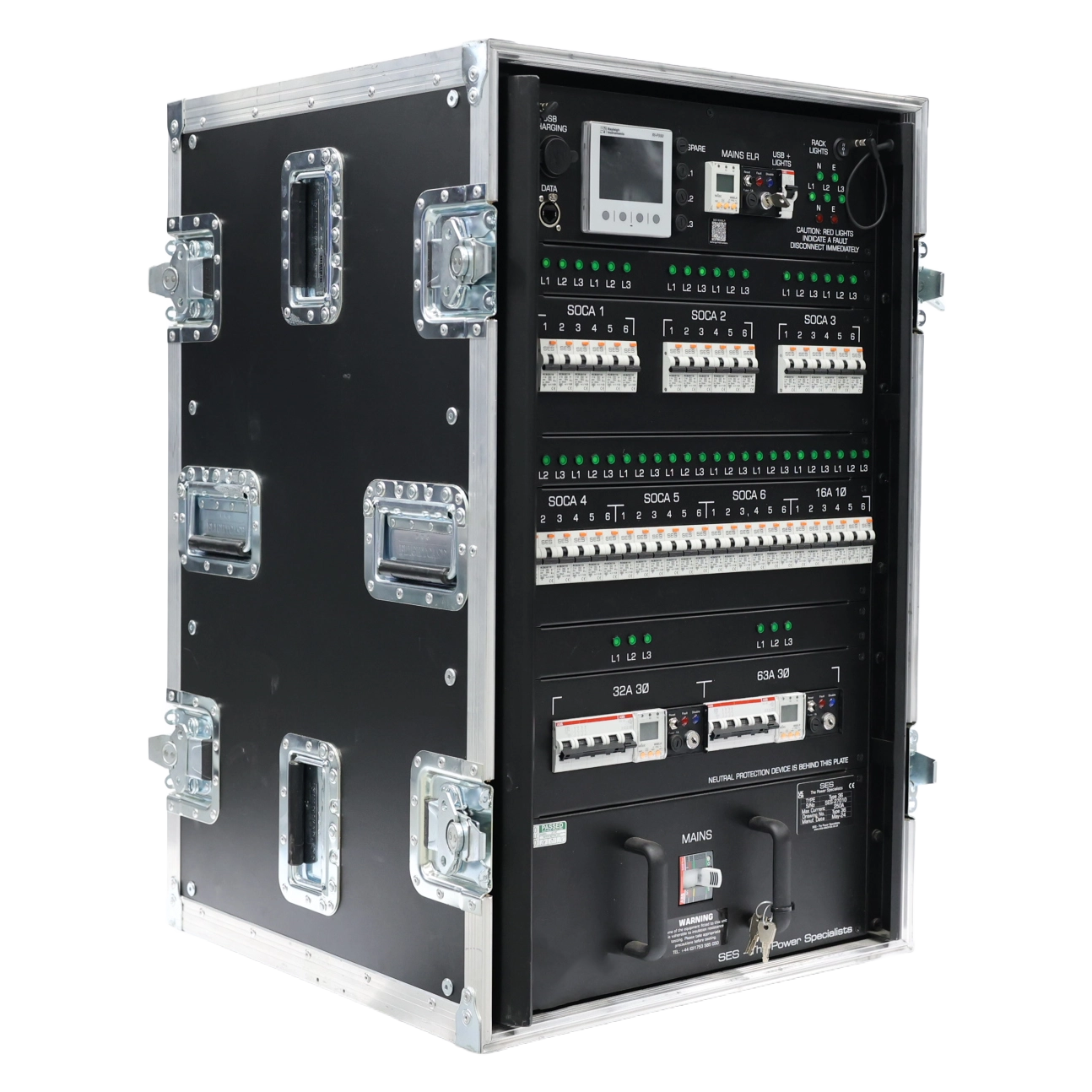

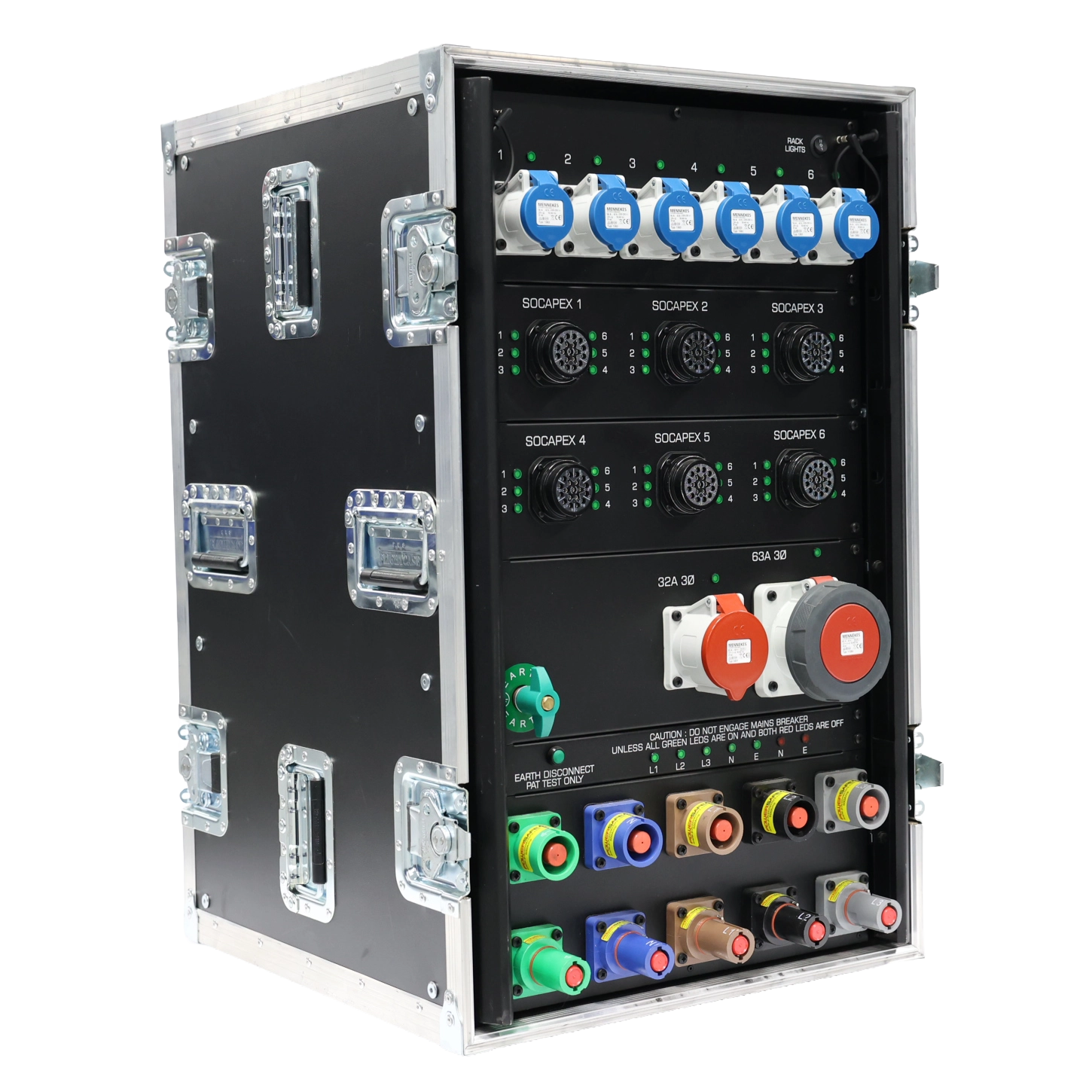

Distro Type HP42d

/ Equipment / Power & Distro / Three Phase HP Soca Outs

Input : 1 x Powerlock (250A MCCB with Variable ELR)

Output : 6 x Socapex (16A C-Type 30mA RCBO x36)

Output : 6 x 16A 1PH (16A C-Type 30mA RCBO x 6)

Output : 1 x 32A 3PH (32A C-Type MCB with Variable ELR)

Output : 1 x 63A 3PH (63A C-Type MCB with Variable ELR)

Through : 1 x Powerlock

This distro features an etherCON connection for RI-F550 monitoring. It also features integrated rack lights and USB charging ports (Type A & C).

Category: Three Phase HP, Three Phase HP Soca Outs
Input: PowerLock
Output: USB-C, Socapex, PowerLock, Ethercon, USB-A, 16A, Single Phase, 32A, Three Phase, 63A, Three Phase
