grandMA3 compact

Key Features

  • Real-time control for up to 250¬†000 parameters per session in connection with grandMA3 processing units
  • 6 DMX outputs, 1 DMX input
  • 1 internal foldable monitor multi-touch screen
  • 1 external multi-touch screen can be connected
  • 29 rotary RGB backlit encoder
  • 5 dual encoders
  • 10 backlit motorized 60 mm faders
  • 40 separate playbacks
  • 16 assignable x-keys
  • 3 etherCON connectors, 5 USB connectors
  • 2 backlit motorized A/B faders 100 mm
  • Individually backlit and dimmable silent (click less) keys

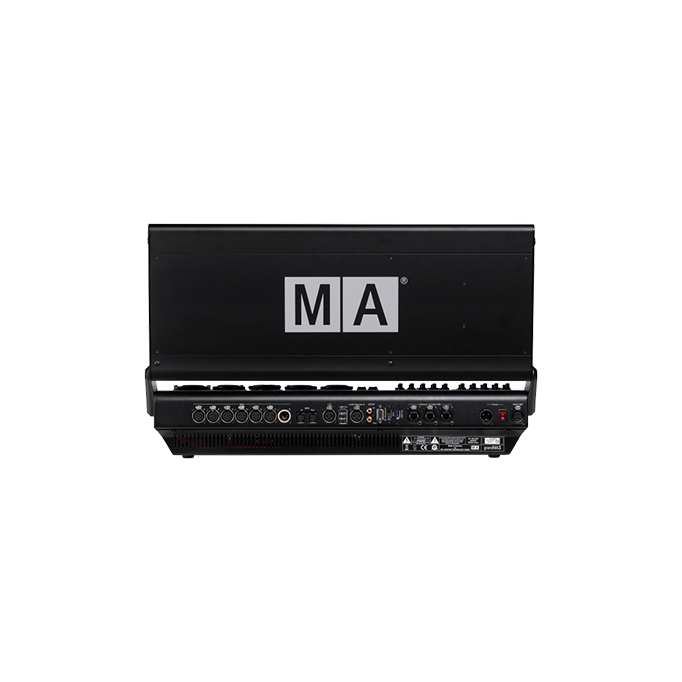

The grandMA3 compact console is the smaller of the two compact models, offering the full system benefits of the grandMA3 system, housed in a compact and lightweight format. Easy to transport, the compact models are ideal for owner/operators and also the console of choice for tech-desk duties. The compact console features a huge multi-touch monitor, 5 dual encoders and a complete command area almost identical to the larger models. With 40 physical playbacks, 16 assignable x-keys and a dedicated master area the grandMA3 compact console provides plenty of playback options. The grandMA3 compact console includes 8 192 control parameters as standard, making it an ideal choice for small and medium sized professional entertainment lighting applications. The system size is scalable to 250 000 parameters with the use of additional grandMA3 processing units. The grandMA3 compact is compatible with grandMA2 and grandMA3 software.
